Jebao MOW-5 Powerhead

Jebao MOW-5 Powerhead

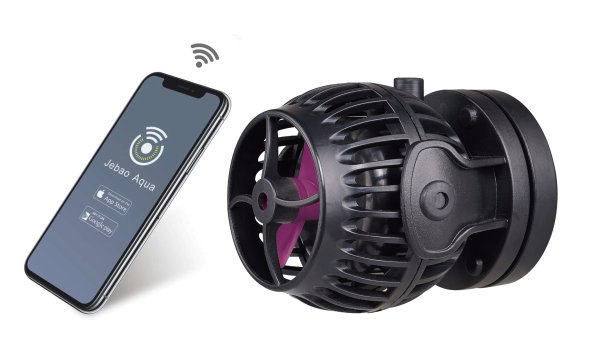

Introducing the Wi-Fi enabled app controllable wavemaker pumps from Jebao.

These pumps come complete with a dual interface controller allowing the settings of the pump to be adjusted directly from the control unit or remotely via the Jebao Aqua App if connected to a home router or mobile device.

Multiple wave patterns are available to choose from by using the controller or App interface. These include Classic, Sine, Random and Constant modes.

These pumps have a compact form with high flow output and a magnetic mount for positioning securely on the aquarium in almost any position. Pivot points on the bracket allow for pump angle adjustment to aim the direction of flow. The super quiet motor uses sine wave technology for reliable and quiet operation.

Features

• Wide stream output
• High flow rates with compact size
• Maximum flow rate setting adjustable
• Multiple daily flow rates programable in the app
• Random, Classic, Sine and Constant wave modes
• App controllable
• Multiple pump linking in App
• Smart control system via 2.4G Wi-Fi
• Direct device or router connection
• LCD Display on controller
• Detachable mounting bracket for controller
• Sine wave technology for quiet operation
• Safe for freshwater and saltwater aquariums
• Wear resistant ceramic shaft
• Low voltage 24V DC power input
• Timed Feed Mode and on/off functions
• Magnetic pump mounting bracket
• Pump can be angled on bracket
• Extra-long pump cable for ease of placement
• Energy efficient

MOW-5: 5000 L/H, Suitable for glass up to 8mm, 24V, 12W

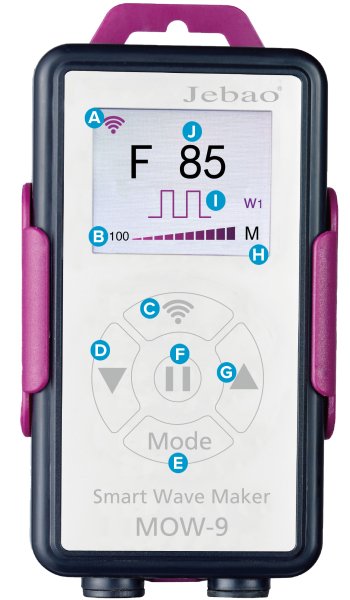

Smart Wi-Fi Controller

A Wi-Fi Status
• Flashing: Controller in smart configuration mode
• Flashing with AP: Controller in AP configuration or Direct mode
• Not flashing: Connected to a router
• Not displayed: Connection with the router has been lost

B Wave Frequency
This can be set between 5 (quick cycling of wave pattern) and 100 (slow cycling of wave pattern).

C Wi-Fi button
Press and hold to cycle between Smart Configuration mode and AP Configuration mode.
Tap to set the unit into Master, Slave, or Stand Alone mode

D Adjust Down Key
Press to reduce the power or frequency setting.

E Mode button
Tap to swap between the wave mode options. When in a wave mode press and hold for three seconds to adjust the wave frequency.

F Pause Button
Tap to set the device into feed mode or to take it out of feed mode and back to normal operation. Holding the button down for 2-3 seconds will switch the pump off, press and hold again to turn the pump back on.

G Up key
Press to increase the power or frequency setting.

H Master/Slave Control
• M: Unit set to master control mode
• S:  Unit set to slave control mode
• Nothing displayed:  Unit set to stand alone mode

I Wave mode
• W1 Classic Wave mode
• W2 Sine Wave Mode
• E Random Wave Mode
• H Constant Flow Mode
• C Shift Wave mode

J Current maximum power setting
Can be set between 30 and 100
